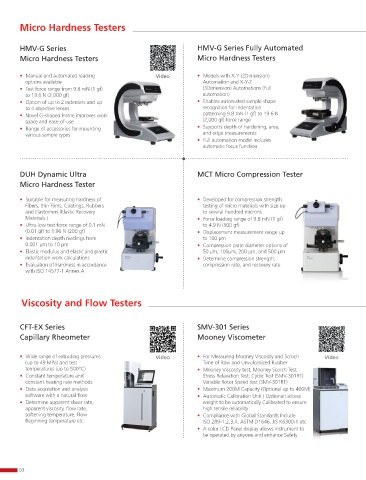

Page 4 - Material Testing Machines
P. 4
Micro Hardness Testers
HMV-G Series HMV-G Series Fully Automated
Micro Hardness Testers Micro Hardness Testers
• Manual and automated reading Video • Models with X-Y (2Dimension)
options available Automation and X-Y-Z
• Test force range from 9.8 mN (1 gf) (3Dimension) Automations (Full
to 19.6 N (2,000 gf) automation)
• Option of up to 2 indenters and up • Enables automated sample shape
to 4 objective lenses recognition for indentation
• Novel G-shaped frame improves work patterning 9.8 mN (1 gf) to 19.6 N
space and ease-of-use (2,000 gf) force range
• Range of accessories for mounting • Supports depth of hardening, area,
various sample types and edge measurements
• Full automation model includes
automatic focus function
DUH Dynamic Ultra MCT Micro Compression Tester
Micro Hardness Tester
• Suitable for measuring hardness of • Developed for compression strength
Fibers, thin Flims, Coatings, Rubbers testing of micro materials with size up
and Elastomers (Elastic Recovery to several hundred microns
Materials ) • Force loading range of 9.8 mN (1 gf)
• Ultra-low test force range of 0.1 mN to 4.9 N (500 gf)
(0.01 gf) to 1.96 N (200 gf) • Displacement measurement range up
• Indentation depth readings from to 100 m
0.001 m to 10 m • Compression plate diameter options of
• Elastic modulus and elastic and plastic 50 m, 100 m, 200 m, and 500 m
indentation work calculations • Determine compression strength,
• Evaluation of Hardness in accordance compression rate, and recovery rate
with ISO 14577-1 Annex A
Viscosity and Flow Testers
CFT-EX Series SMV-301 Series
Capillary Rheometer Mooney Viscometer
• Wide range of extruding pressures Video • For Measuring Mooney Viscosity and Scroch Video
(up to 49 MPa) and test Time of Raw and Unvulcanized Rubber
temperatures (up to 500°C) • Mooney Viscosity test, Mooney Scorch Test,
• Constant temperature and Stress Relaxation Test, Cyclic Test (SMV-301RT)
constant heating rate methods Variable Rotor Speed test (SMV-301RT)
• Data acquisition and analysis • Maximum 200M Capacity (Optional up to 400M)
software with a natural ow • Automatic Calibration Unit ( Optional) allows
• Determine apparent shear rate, weight to be automatically Calibrated to ensure
apparent viscosity, ow rate, high tensile reliability
softening temperature, Flow • Compliance with Global Standards Include
Beginning temperature etc ISO 289-1,2,3,4, ASTM D1646, JIS K6300-1 etc
• A color LCD Panel display allows instrument to
be operated by anyone and enhance Safety
