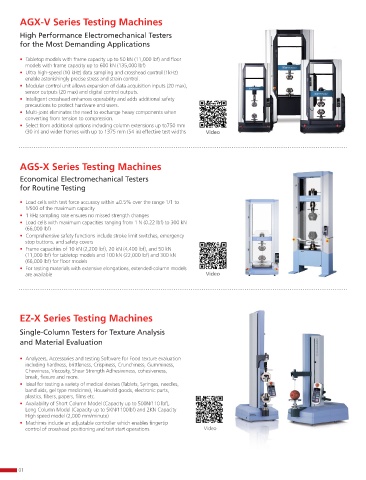

AGX-V Series Testing Machines

       High Performance Electromechanical Testers
       for the Most Demanding Applications

       •  Tabletop models with frame capacity up to 50 kN (11,000 lbf) and  oor
         models with frame capacity up to 600 kN (135,000 lbf)
       •  Ultra high-speed (10 kHz) data sampling and crosshead control (1kHz)
         enable astonishingly precise stress and strain control.
       •  Modular control unit allows expansion of data acquisition inputs (20 max),
         sensor outputs (20 max) and digital control outputs.
       •  Intelligent crosshead enhances operability and adds additional safety
         precautions to protect hardware and users.
       •  Multi-joint eliminates the need to exchange heavy components when
         converting from tension to compression.
       •  Select from additional options including column extensions up to750 mm
         (30 in) and wider frames with up to 1375 mm (54 in) effective test widths  Video





       AGS-X Series Testing Machines

       Economical Electromechanical Testers
       for Routine Testing

       •  Load cells with test force accuracy within ±0.5% over the range 1/1 to
         1/500 of the maximum capacity
       •  1 kHz sampling rate ensures no missed strength changes
       •  Load cells with maximum capacities ranging from 1 N (0.22 lbf) to 300 kN
         (66,000 lbf)
       •  Comprehensive safety functions include stroke limit switches, emergency
         stop buttons, and safety covers
       •  Frame capacities of 10 kN (2,200 lbf), 20 kN (4,400 lbf), and 50 kN
         (11,000 lbf) for tabletop models and 100 kN (22,000 lbf) and 300 kN
         (66,000 lbf) for  oor models
       •  For testing materials with extensive elongations, extended-column models
         are available                                              Video






       EZ-X Series Testing Machines

       Single-Column Testers for Texture Analysis

       and Material Evaluation

       •  Analyzers, Accessories and testing Software for Food texture evaluation
         including hardness, brittleness, Crispiness, Crunchiness, Gumminess,
         Chewiness, Viscosity, Shear Strength Adhesiveness, cohesiveness,
         break,  exure and more.
       •  Ideal for testing a variety of medical devises (Tablets, Syringes, needles,
         band aids, gel type medicines), Household goods, electronic parts,
         plastics,  bers, papers,  lms etc.
       •  Availability of Short Column Model (Capacity up to 500N/110 lbf),
         Long Column Model (Capacity up to 5KN/1100lbf) and 2KN Capacity
         High speed model (2,000 mm/minute)
       •  Machines include an adjustable controller which enables  ngertip
         control of crosshead positioning and test start operations  Video
