NJ-SERVO Series
Electric Motor Driven Actuator
The NJ-SERVO electric motor driven actuator utilizes an electric motor drive system. High accuracy...
EHF-E Series — Frame Type Fatigue Tester
1.The Shimadzu Servopulser is a complete dynamic behavioral evaluation system with fully digital electro-hydraulic servo controller with which high speed loading and data acquisition.
2.This...

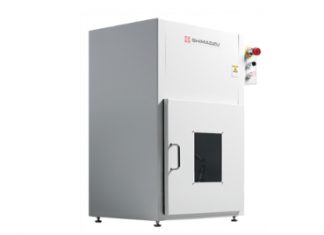

USF-2000A — Ultrasonic Fatigue Tester
This unique instrument based on ultrasonic resonance allows:- 109 cycle testing in 14 hours (compared to 39 days at 300Hz)- 1010 cycle testing in 6...
EHF-JF Series — Compact Hydraulic Actuator
Lightweight, Compact Jack System
The JF Series Force Simulator was developed with the emphasis on light weight, compact size...
EHF-J Series — Hydraulic Actuator Fatigue Tester
Load Method
Electrohydraulic servo(capasity 10 to 300kN)
Controlled Variables
Load,displacement(strain)
Test frequency
0.001 to 30 Hz
(The maximum varies depending on the hydrauli)

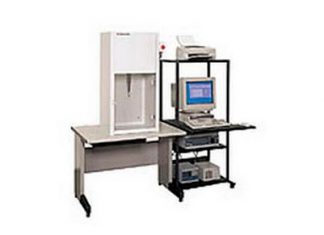

USF-2000 — Ultrasonic Fatigue Testing System
Ultrasonic Fatigue Testing System
The USF-2000 implements materials fatigue testing at 20 kHz. Consequently, it is possible to evaluate 109 to 1010 order fatigue strength, where it...
MMT Series — Electro Magnetic Microservo
Model
MMT-10N-2
MMT-100N-2
MMT-100N-10
Load capacity
Z±10N
Z±100N
Z±100N
Stroke
Z±2mm
Z±2mm
Z±10mm
Maximum frequency
-
30Hz
-
Electromagnetic type servo actuator employed to enable gram-order weighing and high-speed repeat load application at micro level, which makes this series optimal...
EMT Series — Electro Magnetic Fatigue Tester
High-speed repeated load tests can be carried out with a maximum velocity of 2 m/s, and maximum stroke of ±50 mm, using...
EHF-U Series — Frame Type Fatigue Tester
Servo-Hydraulic Testing Machine (Servopulser)
U-Type Loading Frame (Overhead Actuator Type)
For Endurance Testing and Functional Testing of Actual Specimens
The large testing table below and crosshead mounted...
EHF-L Series — Frame Type Fatigue Tester
SERVOPULSER EHF-L Series:
Compact material testing machine of high performance, specifically developed for the R&D of new materials.
The research and development of new materials is...
