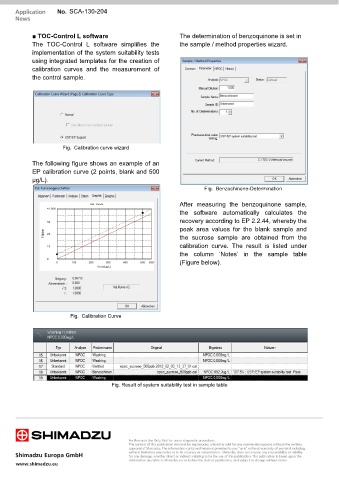

Page 26 - Application Handbook - TOC

SCA-130-204

■ TOC-Control L software The determination of benzoquinone is set in
The TOC-Control L software simplifies the the sample / method properties wizard.
implementation of the system suitability tests
using integrated templates for the creation of
calibration curves and the measurement of
the control sample.

Fig. Calibration curve wizard

The following figure shows an example of an
EP calibration curve (2 points, blank and 500
µg/L).
Fig. Benzochinone-Determination

After measuring the benzoquinone sample,
the software automatically calculates the
recovery according to EP 2.2.44, whereby the
peak area values for the blank sample and
the sucrose sample are obtained from the
calibration curve. The result is listed under
the column ‘Notes’ in the sample table
(Figure below).

Fig. Calibration Curve

Fig. Result of system suitability test in sample table
