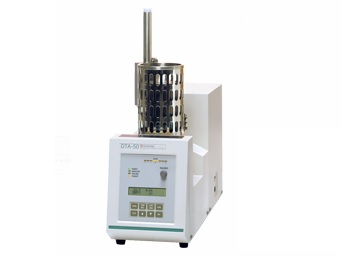

High Temperature (ambient to 1500°C) heat-flux Differential Thermal Analyzer

This DTA uses a dumbbell-shaped detector. A temperature controller, gas flow adjuster, and transmission interface have all been incorporated into a slim, 173 cm-wide body. A high-temperature DSC function is also included.

  • Temperature range: Room temperature to 1500°C
  • Measurement range: ±0.2 to ±1000 μV (from ±0.2 mW)
  • Heating speed: 0 to +50°C/min
    High Temperature Heat Flux DTA, Provides Quantitative Calorimetry Measurements Quick Response and High Sensitivity Accurate Temperature Control High Temperature DSC Type Performance Rapid Atmosphere Purge

Specifications

Temperature range
Ambient to 1500°C
Temperature program format
99 steps maximum
(accurate type use up to 1100°C)
Temperature program file
Up to 100 files
Measuring range (DTA/DSC)
0.2 to 1000 V/0.2mW
Sample
Solid or liquid
Signal output
Analog and digital
Dimensions
W173 x D540 x H400mm
Programmable heating rate
0.1 to 50.0°C/min, and 0.1 to 50.0°C /hour
Power supply
AC100V, 120V, 220V,
Hold time
0 to 999min, 0 to 999 hour
240V, 1.2kVA, 50/60Hz
Atmosphere control
Built-in gas flowmeter (250ml/min maximum)
